Sky Quality Meter - LU-DL "You've got to kick at the brightness 'til it bleeds starlight."
- with apologies to Bruce Cockburn
Sky Quality Meter-LU-DL

A USB enabled data-logging light meter for night-time sky brightness monitoring!

An affordable meter for continual, connected or autonomous data-logging to measure sky brightness for astronomers and light pollution investigators.

The "Sky Quality Meter - LU-DL" (SQM-LU-DL) measures the brightness of the night sky in magnitudes per square arcsecond.

Designed by Dr. Doug Welch and Anthony Tekatch


Uses:
  • Measuring the night sky brightness during remote biological field experiments.
  • Find out how good the night or site REALLY is.
  • Compare the sky brightness at different sites quantitatively.
  • Document the evolution of light pollution in your area.
  • Set planetarium dome illumination to mimic the skies people are likely to experience elsewhere in the city.
  • Monitor sky brightness through the night, night-to-night, and year-to-year.
  • Determine which nights show the greatest promise for finding the 'faintest fuzzies'!
  • Calibrate the effect of sky brightness on qualitative measures such as the Bortle Scale.
  • Investigate how sky brightness correlates with the solar cycle and month-to-month sunspot activity.
  • Help provide local ground truth for future sky brightness prediction with the Clear Sky Clock.
  • CCD users can make a correlation between the SQM reading and when the background reaches some ADC level.

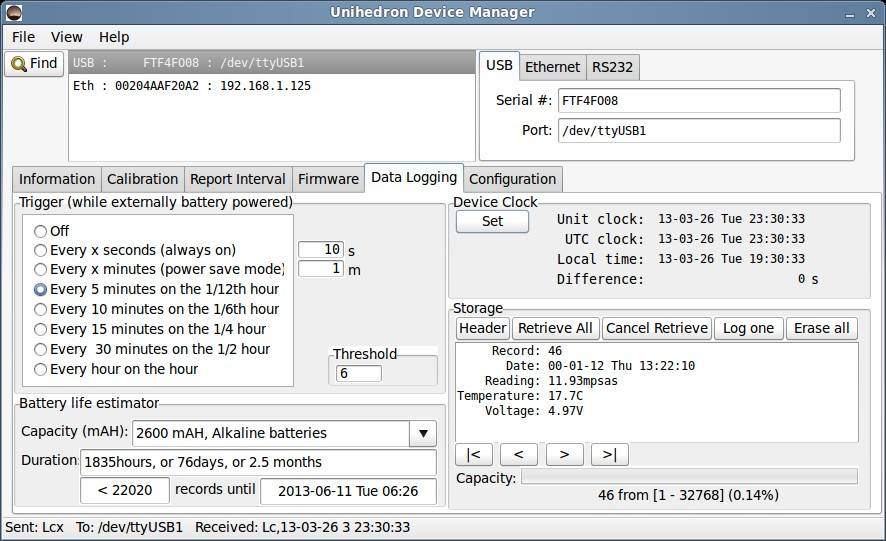

SQM-LU-DL control panel

Features:

  • Sky brightness reported in visual magnitudes per square arcsecond.
  • Infrared blocking filter restricts measurement to visual bandpass.
  • Sensor temperature, model number, and serial number are provided.
  • Precision readings at even the darkest sites.
  • Field-upgradeable firmware.
  • All the features of our SQM-LU (USB model) plus Data logging capabilities.
  • Open protocol document.

Specifications:
  • USB connectivity
  • Included applications for reading data in Perl.
  • The Half Width Half Maximum (HWHM) of the angular sensitivity is ~10°. The Full Width Half Maximum (FWHM) is then ~20°. The sensitivity to a point source ~19° off-axis is a factor of 10 lower than on-axis. A point source ~20° and ~40° off-axis would register 3.0 and 5.0 magnitudes fainter, respectively. Annotated FOV spec.
  • Comparison chart.
  • Size 5.5 x 2.6 x 1.1 in.
  • Maximum light sampling time: 80 seconds.
  • Minimum light sampling time: 1 seconds.
  • Powered by external battery pack (included) for field data logging, or USB data cable for computer powered data logging using UDM, or 5V USB "phone" charger for mains powered data logging (see charger requirements here).
  • Recording memory capacity: 1048576 records total.
  • Specifications are subject to change without notice.

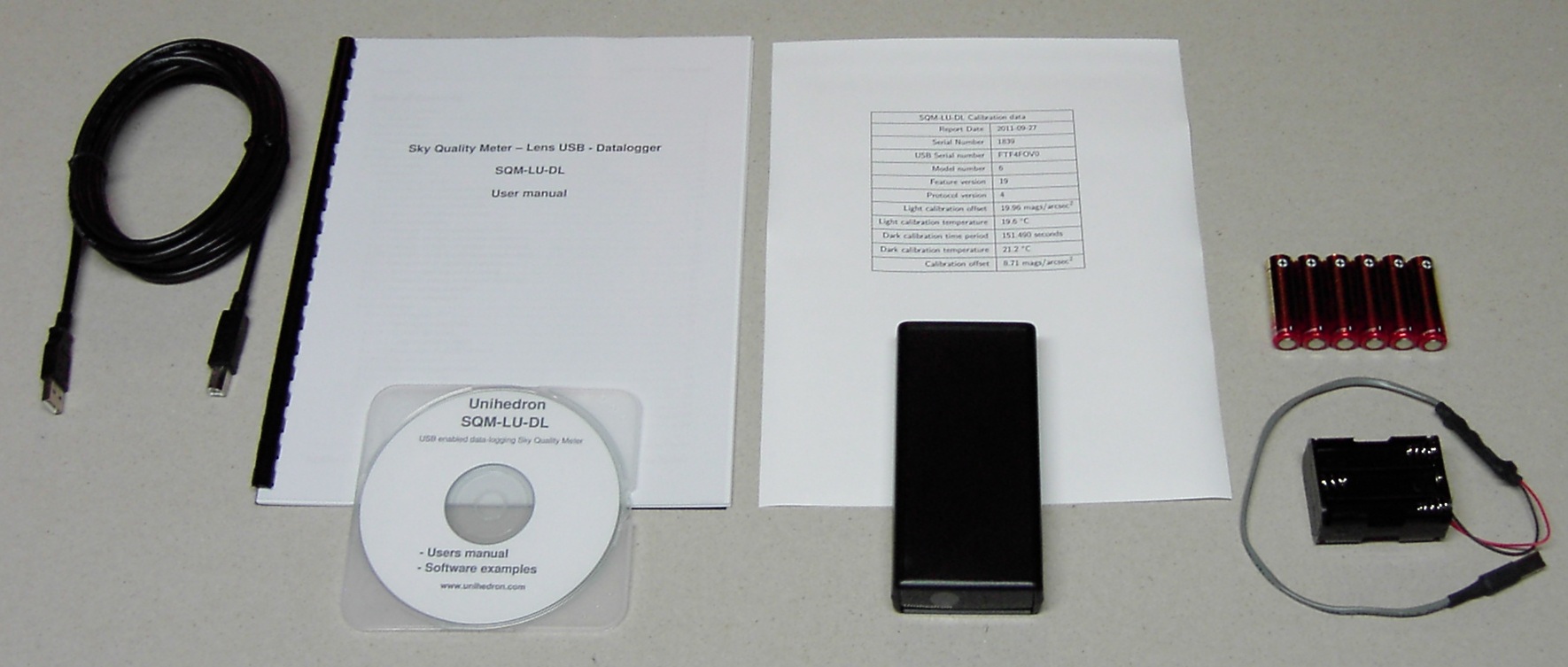

What you get:
  • SQM-LU-DL unit
  • USB flash drive containing the users manual, operation software (UDM), and example software. This can also be found online.
  • 15ft USB cable
  • Battery-to-USB adapter with 6 AA cells and battery holder
  • Calibration sheet indicates unit USB serial number, and calibration values
Ready to buy?


Price $287US plus Shipping & Handling.

Dealers

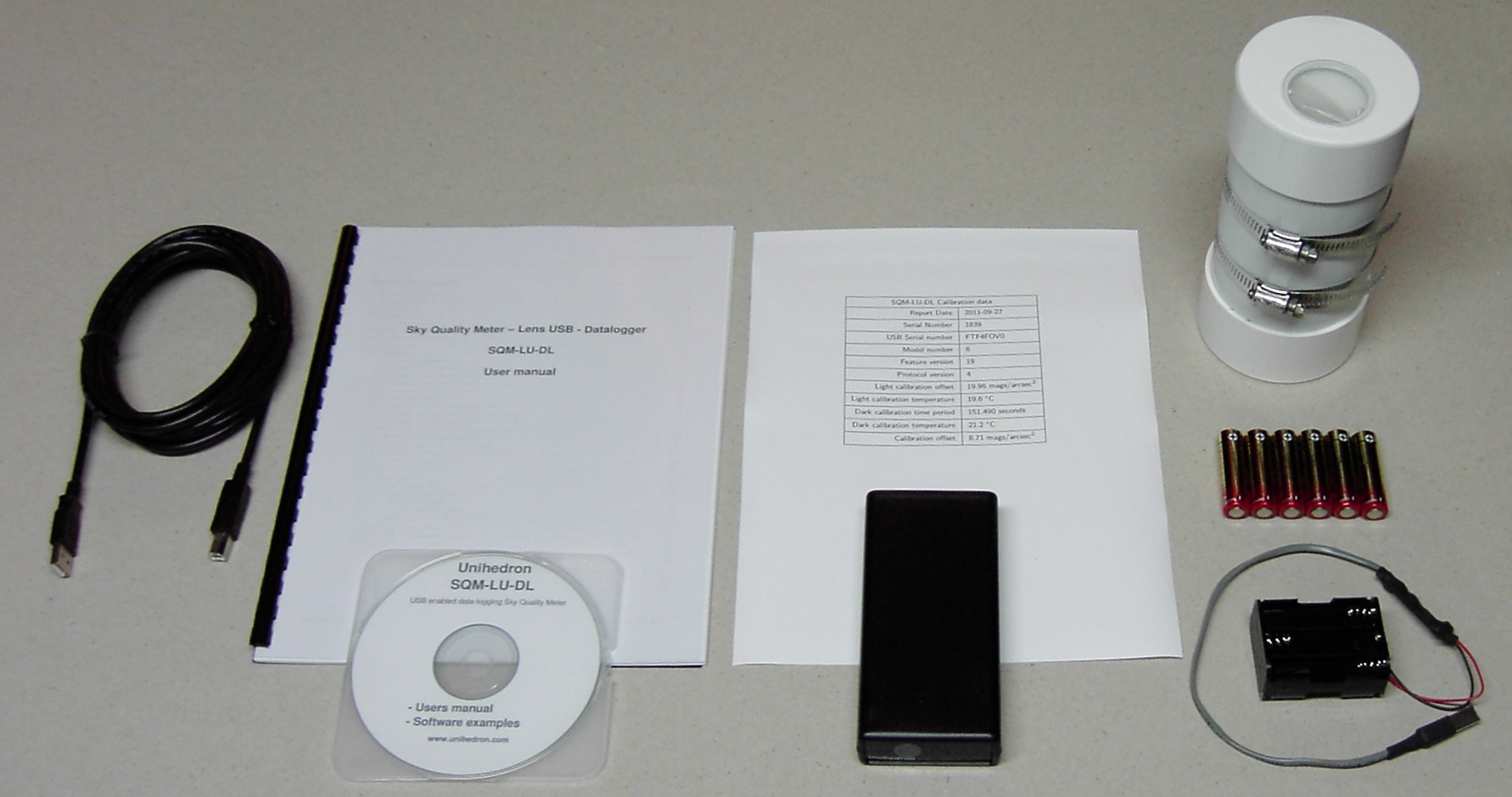

What you get (with housing):
  • SQM-LU-DL unit
  • USB flash drive containing the users manual, operation software (UDM), and example software. This can also be found online.
  • 15ft USB cable
  • Battery-to-USB adapter with 6 AA cells and battery holder
  • Calibration sheet indicates unit USB serial number, and calibration values
  • Weatherproof housing
Ready to buy?


Price $333US plus Shipping & Handling.

Dealers

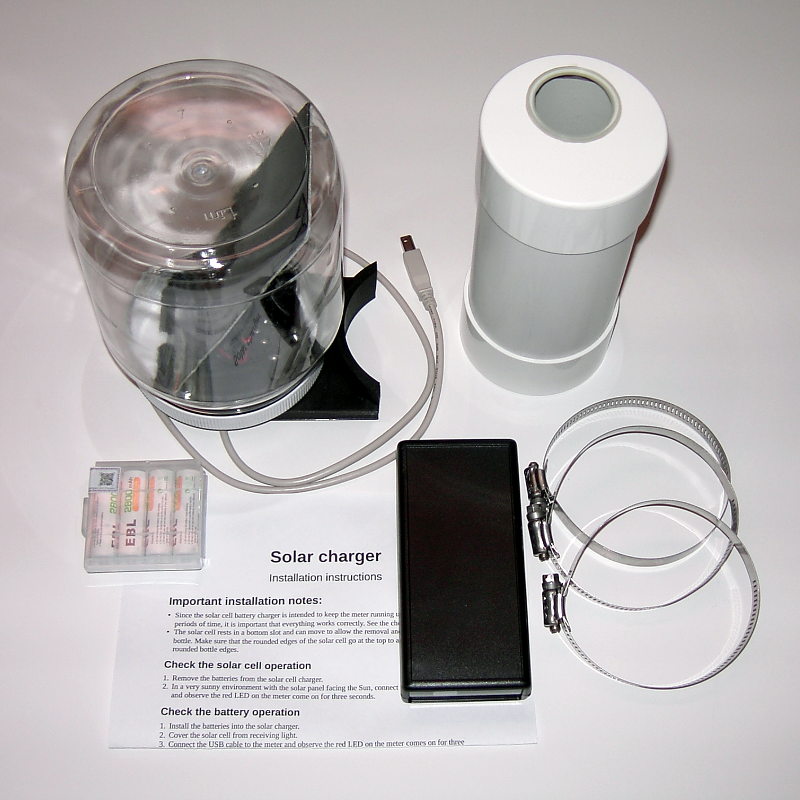

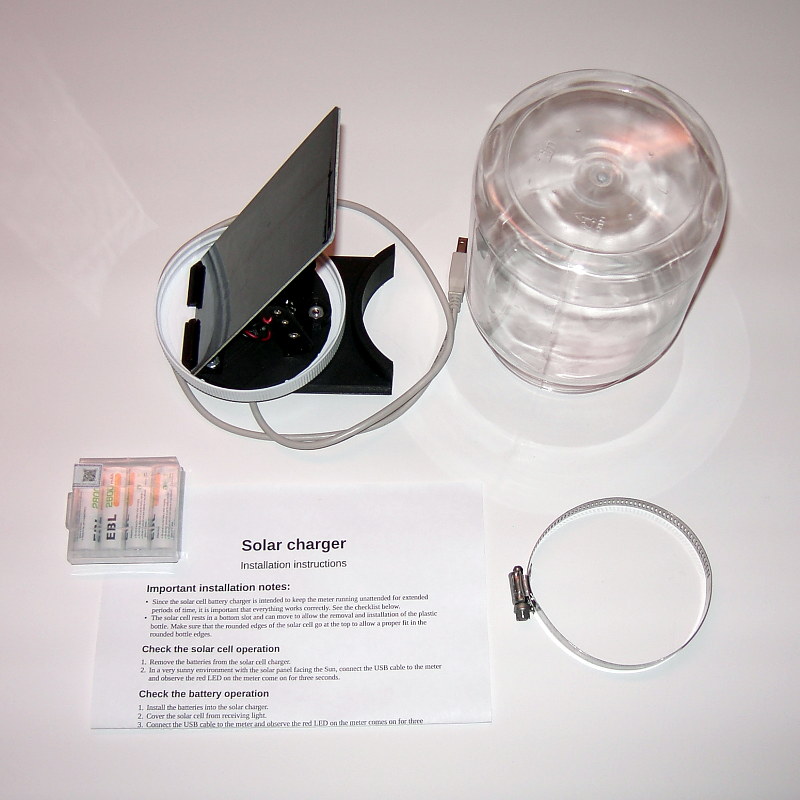

What you get with the SQM-DLHSC (Solar DL kit) package:
  • Clear plastic bottle to protect the charging circuit from the elements.
  • Solar panel with battery charging circuit with attached 32" (81cm) USB cable to connect to SQM-LU-DL.
  • 4-AA NiMH batteries (manufacturer may vary).
  • Stainless steel clamp to mount to the included SQM-H housing.
  • Installation instructions (PDF)
  • SQM-LU-DL meter
  • Calibration sheet indicates unit USB serial number, and calibration values
  • Weatherproof housing
  • USB 2.0 A to B cable, 1ft length, data cable for programming and data retrieval.
  • No SQM-LU-DL users manual, you can get the manual online here.
  • No CD/FLASH-drive, you can get all required software from here
  • No extra battery pack or batteries as the solar charger includes batteries
Ready to buy?


Price $421US plus Shipping & Handling.

Dealers

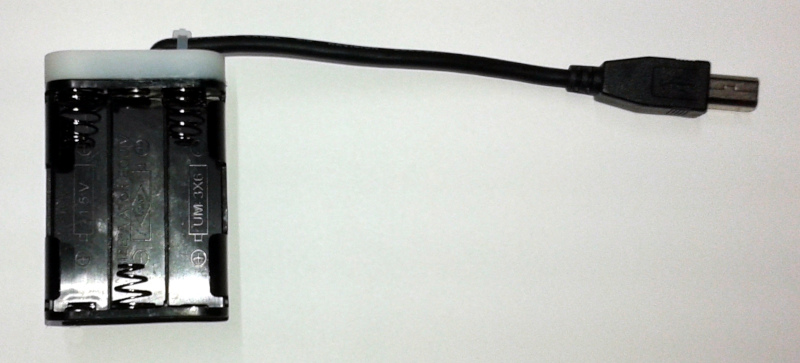

DL-batt replacement battery pack:
  • Battery holder with built in voltage regulator to provide 5V for USB connection.
Ready to buy?


Price $17US plus Shipping & Handling.

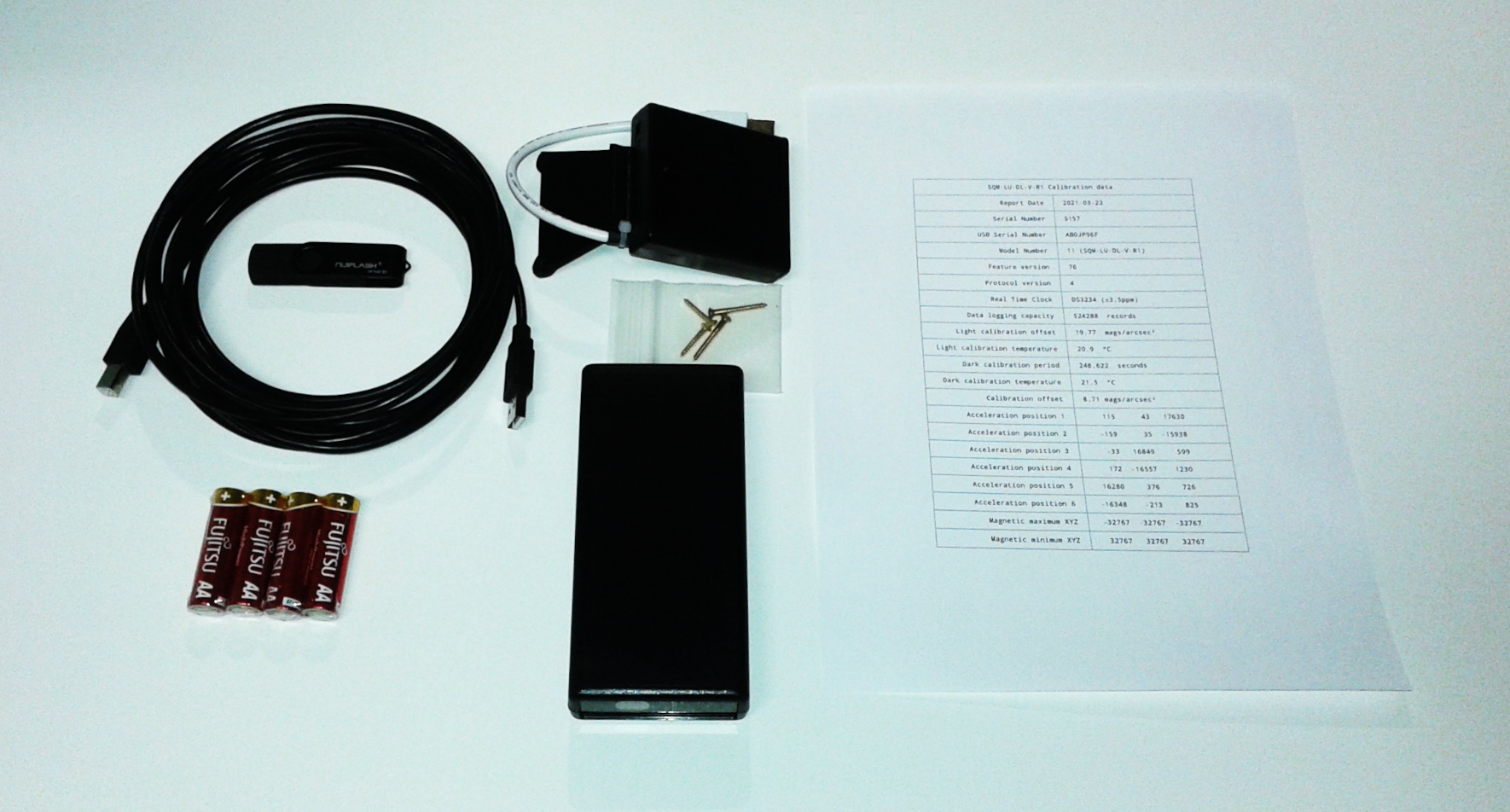

Vector model:
  • SQM-LU-DL-V Vector unit measures pointing angle (altitude and azimuth)
  • USB flash drive containing the users manual, operation software (UDM), and example software. This can also be found online.
  • 15ft USB cable
  • Battery-to-USB adapter with 4 AA cells and battery holder
  • Calibration sheet indicates unit USB serial number, and calibration values
Ready to buy?

out of stock

Price $345US plus Shipping & Handling.

Details: Software Downloads: Reports including the SQM: Light pollution maps / databases: Useful Light pollution links: USB information:
Unihedron supports the goals of the International Dark-Sky Association.

SQM tripod adaptor option


SQM example

SQM-L example

SQM-LE example

SQM-LU-DL example

This adaptor kit was designed to fit the SQM, SQM,L,LU,LE,LR,DL. The battery compartments in the handhelds meters is accessible with the adaptor in place.

The adaptor screws into the back of the meter and allows the meter to be mounted on a tripod with a 1/4-20 thread.

The kit includes one tripod adaptor, 3D-printed black or white plastic adaptor, and two longer screws (to replace two short screws already in the meter).

3D part view


SQM-x-TA Kit
$20USD

Sky Quality Meter  - Window mount


Example

This Window mounting bracket is used for moving light pollution studies while a "connected" meter and GPS are attached to a computer using UDM logging the continuously with GPS option enabled described at this forum post.

Read more details here.


SQM-WM Kit
$25USD

You may also be interested in; the SQM-LE/LU housing, or our low-cost handheld sky meter (SQM), or our narrow-field handheld sky meter (SQM-L), or our Ethernet conected sky meter (SQM-LE).
Compare models.
