Sky Quality Meter  - Solar charger


Click for closeup

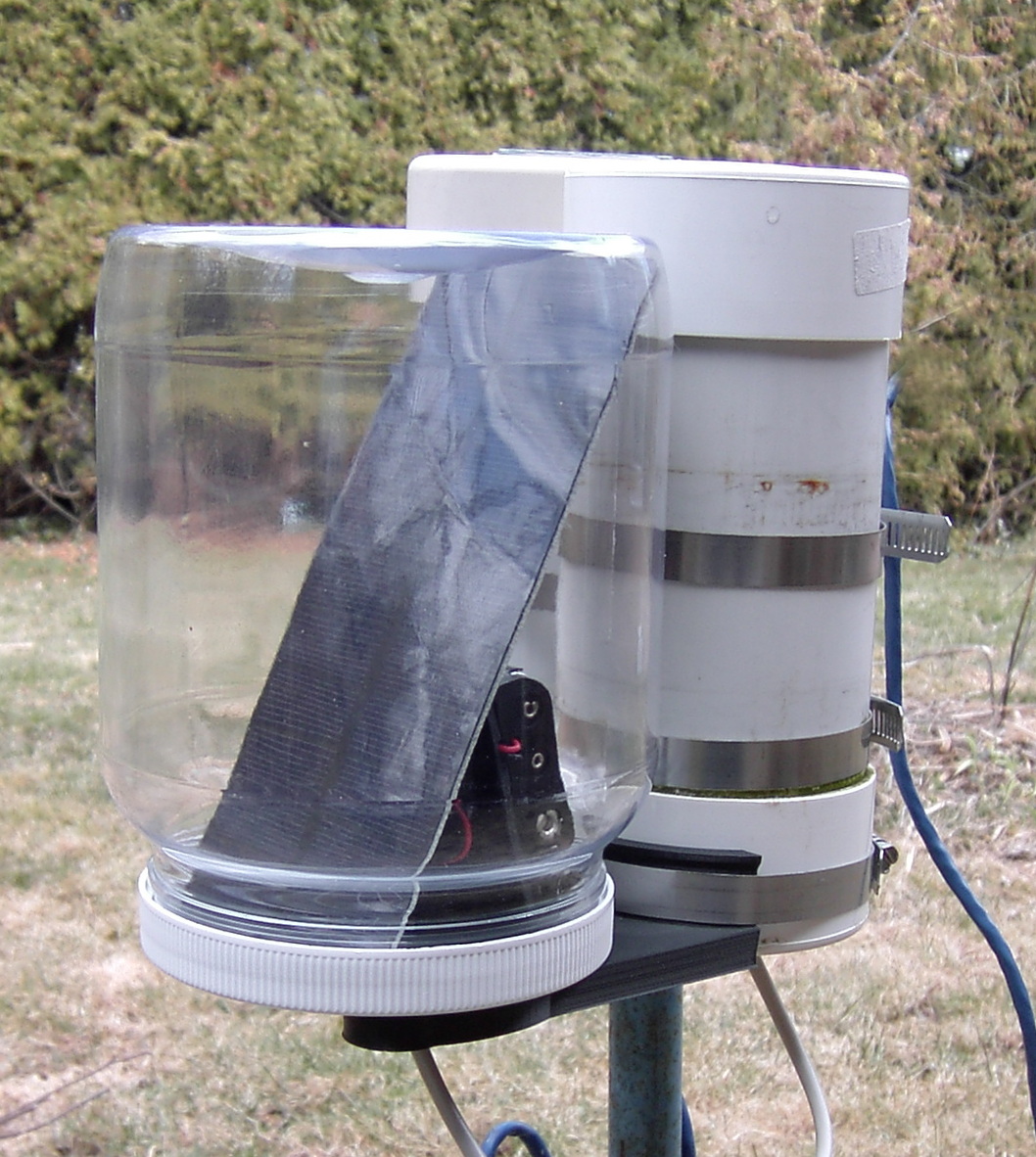

Showing the solar charger kit connected to an SQM-LU-DL mounted in our standard housing (SQM-H), and a partially hidden tube in the back is for a separate SQM-LE.

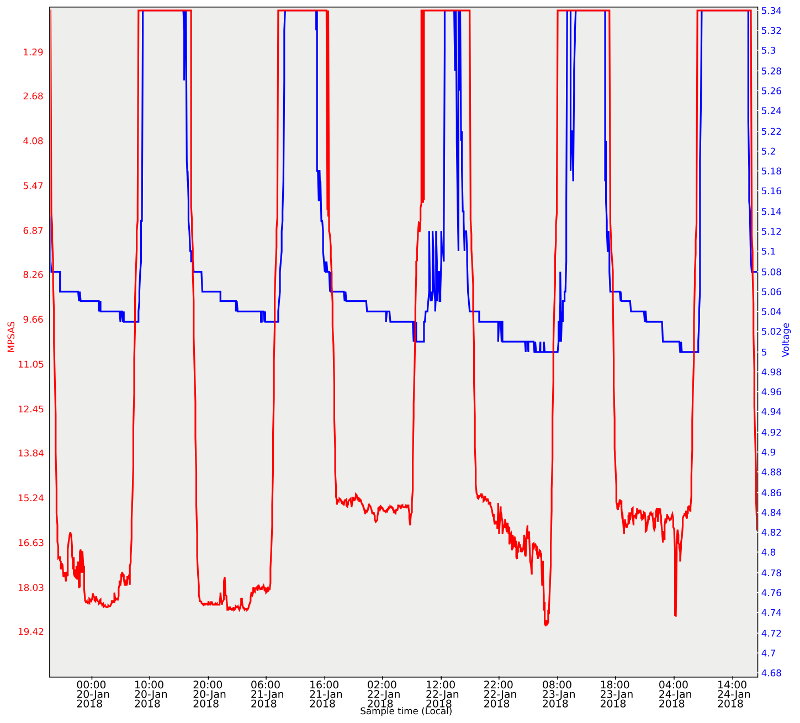

Charging profile:

Click for closeup
Data set with solar charger attached. Check out the plot with our UDM software.

This unit mounts to the sunny side of the SQM-H housing and charges up the 4xAA NiMH batteries (included) so that the SQM-LU-DL can operate throughout the nighttime. It replaces the original SQM-LU-DL battery pack.

The clear plastic bottle keeps rain and snow from the inside.

The smooth round shape reduces the possibility that a passing creature or person will catch on it.

A drainage hole in the bottom allows accumulated moisture to escape.

An open-cell foam insert prevents insects from crawling up inside the container.

Even cloudy days provide sufficient charging to keep the batteries topped up.

At one reading every five minutes, the SQM-LU-DL can hold almost a year's worth of readings without changing batteries.


What you get with the SQM-SC (Solar charger):
This Solar charger unit includes everything required to power the SQM-LU-DL:
  • Clear plastic bottle to protect the charging circuit from the elements.
  • Solar panel with battery charging circuit with attached 32" (81cm) USB cable to connect to SQM-LU-DL.
  • 4-AA NiMH batteries (manufacturer may vary).
  • Stainless steel clamp to mount to existing SQM-H housing.
  • Installation instructions (PDF)
Ready to buy?


Price $134US plus Shipping & Handling.

Dealers


What you get with the SQM-DLHSC (Solar DL kit):
  • Clear plastic bottle to protect the charging circuit from the elements.
  • Solar panel with battery charging circuit with attached 32" (81cm) USB cable to connect to SQM-LU-DL.
  • 4-AA NiMH batteries (manufacturer may vary).
  • Stainless steel clamp to mount to the included SQM-H housing.
  • Installation instructions (PDF)
  • SQM-LU-DL meter
  • Calibration sheet indicates unit USB serial number, and calibration values
  • Weatherproof housing
  • USB 2.0 A to B cable, 1ft length, data cable for programming and data retrieval.
  • No SQM-LU-DL users manual, you can get the manual online here.
  • No CD, you can get all required software from here
  • No extra battery pack or batteries as the solar charger includes batteries
Ready to buy?


Price $421US plus Shipping & Handling.
